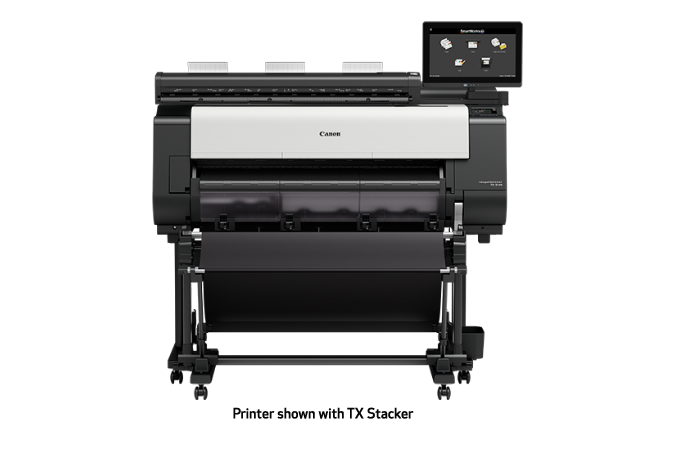

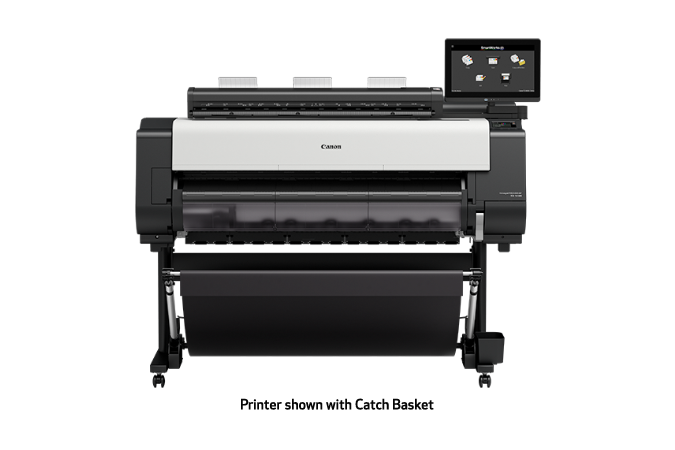

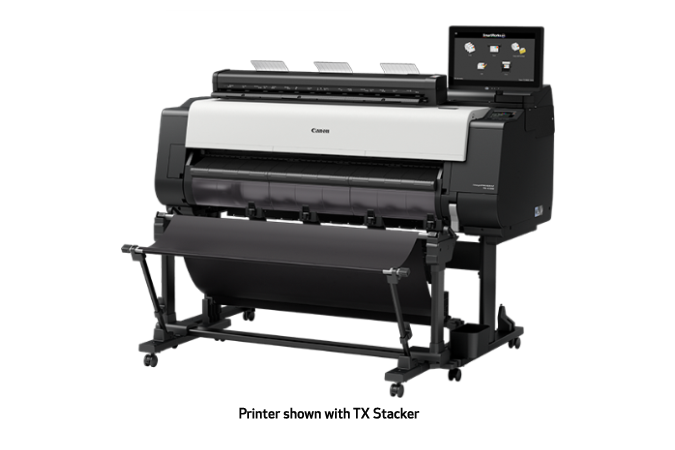

Canon imagePROGRAF TX-4100 MFP Z36 with stacker, front Canon imagePROGRAF TX-4100 MFP Z36 with stacker, side Canon imagePROGRAF TX-4100 MFP Z36 with basket, front Canon imagePROGRAF TX-4100 MFP Z36 with basket, front
Click on Image to Enlarge

Canon imagePROGRAF TX-4100 44-inch Large Format Printer 5516C003AA

Product Number: 5516C003AA
SKU: TX-4100 MFP Z36
In Stock
Canon imagePROGRAF TX-4100 MFP Z36 with stacker, front Click on Image to Enlarge
Canon imagePROGRAF TX-4100 MFP Z36 with stacker, front Canon imagePROGRAF TX-4100 MFP Z36 with stacker, side Canon imagePROGRAF TX-4100 MFP Z36 with basket, front Canon imagePROGRAF TX-4100 MFP Z36 with basket, front

Call for Best Price414-321-1422

Get the best price:

Call Live Chat E-Mail

Canon imagePROGRAF TX-4100 MFP Z36 44-inch Multifunction Printer

The Canon imagePROGRAF TX-4100 MFP Z36 Multifunction Plotter features a production CAD printer and Z36 scanner with new SmartWorks MFP software for intuitive operability. Large format scanning, copying and printing have never been easier. The SingleSensor Technology Assembly1 allows for consistently higher color accuracy and more detail in shadows in highlights. Files can be shared and stored through the Ethernet card or with a USB device. The TX-4100 MFP Z36 can be purchased with either the TX stacker or multipositional catch basket. TX stacker is capable of stacking 100 sheets of ARCH C, ARCH D or ARCH E/E1 sizes, and can be folded up when not being used. The multipositional catch basket is adjustable and provides flexible output options including catch basket, flatbed stacking and slope.

A 5-color, 44” large-format multifunction printer for high-volume workgroups.

High-performance printer designed for CAD, technical drawings, detailed renderings, posters and other documents requiring high-quality output. With an integrated scanner and computer, it has everything you need to copy, scan, archive and share documents.

WAB Paper Supply has the best prices on new Canon iPF printers!

We accept trade-ins for Canon iPF printers. Call 414-321-1422 for details.



Canon imagePROGRAF TX-3100 Multifunction system includes:

  • TX-4100 44” printer
  • Z36 Scanner
  • Automatic roll loading
  • SmartWorks software
  • Advanced security features
  • Available with TX Stacker or Catch Basket





Canon imagePROGRAF TX-3100 MFP Z36 Specs

Main Unit

Printer Type

  • 5-Color, 44-inch Printer Plotter

Number of Nozzles

  • Total: 15,360
  • MBK: 5,120 nozzles
  • C, M, Y, BK: 2,560 nozzles each

Nozzle Pitch

  • 1,200 dpi
  • Non-firing nozzle detection and compensation

Print Resolution (Up to)

  • 2,400 x 1,200 dpi (Max)

OS Compatibility

  • Windows® 7, 8.1, 10 (32/64bit)
  • Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
  • Macintosh® OS 10.12.6 & later

Standard Interfaces

  • USB 2.0 High-Speed
  • 10/100/1000 Base-T/TX

Ink Droplet Size

  • 5 picoliter

Ink Capacity

  • 160ml, 330ml or 700ml per color

Ink Types

  • Pigment Ink

Color Set

  • Pigment: Matte Black, Black, Cyan, Magenta, Yellow

Buffer/Ram

  • 128 GB (Virtual)
  • 2 GB (Physical)

Hard Drive

  • 500 GB

Media Width

  • Cut Sheet: 6" - 44" (203.2mm - 914mm)
  • Roll Feed: 6" - 44" (203.2mm - 914mm)

Media Thickness

  • 0.07 - 0.8 mm (2.8 - 31.4mil)

Maximum Roll Print Length

  • Roll Feed: 59' (18 meters)

Maximum Media Roll Diameter

  • 6.7" (170mm)

Borderless Printing Width

  • All sizes

Paper Feed Method

  • Roll Feed: One Roll, Front-loading, Front Output
  • Manual Feed: Cut Sheet, Front Output

Languages

  • SGRaster, HPGL/2, HP-RTL, PDF, JPEG

Noise Level Approx

  • Operation: 51 dB (A) or less
  • Standby: 35 dB (A) or less
  • Acoustic Power: 6.9 Bels or less

Physical Dimensions

  • 46“ x 63“ x 47" (Main unit and TX Stacker; roll holder included, no inks, no print heads)
  • 46“ x 63“ x 39" (Main unit and Catch Basket Opened)

Weight

  • Approx. 278 lbs (Main unit and TX Stacker; roll holder included, no inks, no print heads)
  • Approx. 252 lbs (Main unit and Catch Basket)

Power Source

  • AC-100-240V (50-60Hz)

Power Consumption

  • Maximum: 116W or less
  • Standby: 2.0W or less
  • Power Off: 0.3W or less (Compliant with Executive Order)

Operating Environment

  • Temperature: 59°-86° F (15°-30° C)
  • Relative Humidity: 10-80% (No Condensation)

User-replaceable items

  • Print Head: PF-06
  • Maintenance Cartridge: MC-30
  • Ink Tanks: PFI-110/PFI-310/PFI-710

Software Available

  • Accounting Manager
  • Canon Print Service
  • Device Management Console
  • Direct Print Plus
  • Printer Driver Extra Kit
  • Free Layout Plus
  • TX Unified Printer Driver
  • Media Configuration Tool
  • PosterArtist Lite for Windows
  • Optimized Driver for AutoCAD
  • CPP Publisher Select
  • CPP Driver Select

Scanner

Scanner Type

  • Contact image sensor (CIS) technology

Scan Accuracy

  • +/-0.1%

Speed

  • Monochrome: 13 ips
  • Color: 6 ips

Optical Resolutions

  • 1,200 dpi (adjustable from 100 dpi to 2,400 dpi)

Max. Resolutions

  • 9,600 dpi interpolated

Max. Document Size

  • Width: 38-inch document, 36-inch image

Length

  • 315 (JPG or PDF)
  • 598 (TIFF)

Max. Thickness

  • 0.04in (1mm)

Standard Interfaces

  • USB 3.0 (PC connector compatible with USB 2.0 & USB 3.0 sockets)
