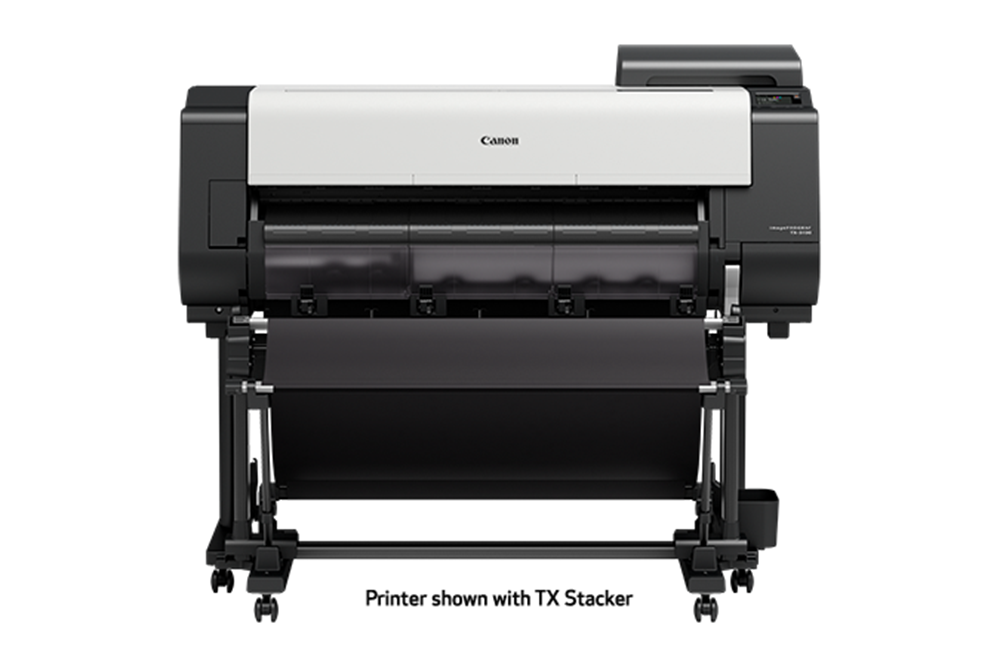

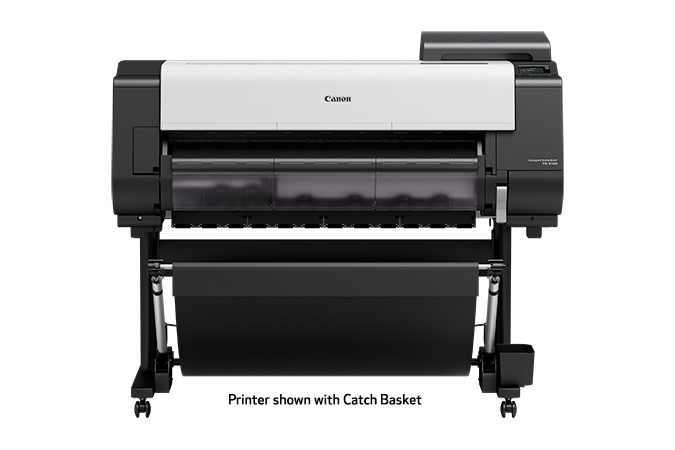

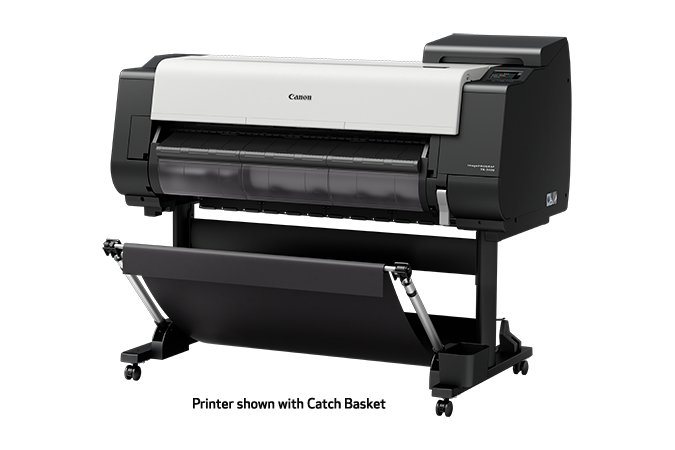

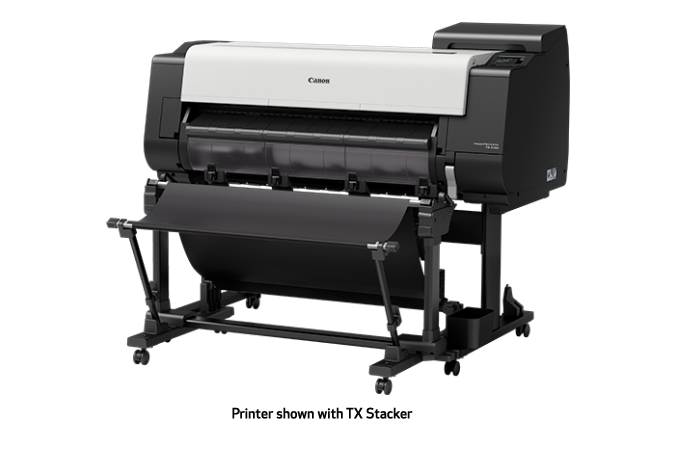

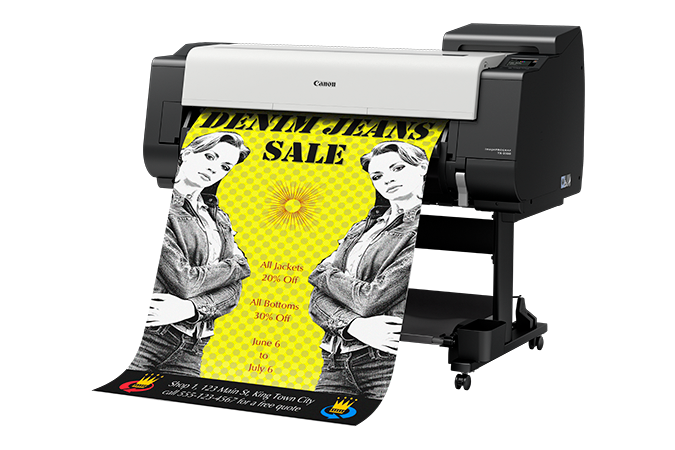

Canon imagePROGRAF TX-3100 with stacker Canon imagePROGRAF TX-3100 with stacker Canon imagePRORAF TX-3100 with basket Canon imagePROGRAF TX-3100 with basket Canon imagePROGRAF TX-3100
Click on Image to Enlarge

Canon imagePROGRAF TX-3100 Large Format Printer

Product Number: 5515C001AA
SKU: TX-3100
In Stock
Canon imagePROGRAF TX-3100 with stacker Click on Image to Enlarge
Canon imagePROGRAF TX-3100 with stacker Canon imagePROGRAF TX-3100 with stacker Canon imagePRORAF TX-3100 with basket Canon imagePROGRAF TX-3100 with basket Canon imagePROGRAF TX-3100

Call for Best Price414-321-1422

Get the best price:

Call Live Chat E-Mail

Canon imagePROGRAF TX-3100 Large Format Printer 36-inch 5515C001AA

The new Canon imagePROGRAF TX-3100 features printing speeds of up to 3.2 ppm during continuous print jobs, and boasts advanced security technology ideal for large businesses or government and military needs. Part of the imagePROGRAF TX series, the TX-3100 follows in innovation and functionality, with an upgraded system to reach even greater productivity in technical document printing. The TX-3100 is available for purchase with the TX stacker, which can stack up to 100 sheets of ARCH C, ARCH D or ARCH E/E1 size documents, or the multipositional catch basket with adjustable output options.

A 5-color, 36” large format printer for high-volume workgroups.

High-performance aqueous inkjet printer for CAD, detailed drawings and other technical documents requiring high-quality printing.

We accept trade-ins for Canon iPF printers. Call 414-321-1422 for details.

Canon imagePROGRAF TX-3100 at a glance:

  • Borderless printing
  • 5 ink tanks (330 ml MBK, 160 ml C/M/Y/BK)
  • 4.3" LCD touchscreen
  • 500 GB hard drive
  • Available with TX Stacker or TX Catch Basket



Canon imagePROGRAF TX-3100 Large Format Printer Specs

Printer Type

  • 5-Color, 36-inch Printer Plotter

Number of Nozzles

  • Total: 15,360
  • MBK: 5,120 nozzles
  • C, M, Y, BK: 2,560 nozzles each

Nozzle Pitch

  • 1,200 dpi
  • Non-firing nozzle detection and compensation

Print Resolution (Up to)

  • 2,400 x 1,200 dpi (Max)

OS Compatibility

  • Windows® 7, 8.1, 10 (32/64bit)
  • Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
  • Macintosh® OS 10.12.6 & later

Standard Interfaces

  • USB 2.0 High-Speed
  • 10/100/1000 Base-T/TX

Ink Droplet Size

  • 5 picoliter

Ink Capacity

  • 160ml, 330ml or 700ml per color

Ink Types

  • Pigment Ink

Color Set

  • Pigment: Matte Black, Black, Cyan, Magenta, Yellow

Buffer/Ram

  • 128 GB (Virtual)
  • 2 GB (Physical)

Hard Drive

  • 500 GB

Media Width

  • Cut Sheet: 6" - 36"
  • Roll Feed: 6" - 36"

Media Thickness

  • Roll: 0.07 - 0.8 mm (2.8 - 31.4mil)

Maximum Roll Print Length

  • Roll Feed: 59' (18 meters)

Maximum Media Roll Diameter

  • 6.7" (170mm)

Borderless Printing Width

  • all sizes

Paper Feed Method

  • Roll Feed: One Roll, Front-loading, Front Output
  • Manual Feed: One Roll, Front Output

Languages

  • SGRaster, HPGL/2, HP-RTL, PDF, JPEG

Noise Level Approx

  • Operation: 51 dB (A) or less
  • Standby: 35 dB (A) or less
  • Acoustic Power: 6.9 Bels or less

Physical Dimensions

  • 46“ x 55“ x 47“ (Main unit and TX Stacker)
  • 46“ x 55“ x 39“ (Main unit and TX Catch Basket opened)

Weight

  • Approx. 257 lbs (Main unit and TX Stacker; roll holder included, no inks, no print heads)
  • Approx. 231 lbs (Main unit and Catch Basket)

Power Source

  • AC-100-240V (50-60Hz)

Power Consumption

  • Maximum: 115W or less
  • Standby: 2.0W or less
  • Power Off: 0.3W or less (Compliant with Executive Order)

Operating Environment

  • Temperature: 59°-86° F (15°-30° C)
  • Relative Humidity: 10-80% (No Condensation)

User-replaceable items

  • Print Head: PF-06
  • Maintenance Cartridge: MC-30
  • Ink Tanks: PFI-110/PFI-310/PFI-710

Software Included

  • Accounting Manager
  • Canon Print Service
  • Device Management Console
  • Direct Print Plus
  • Printer Driver Extra Kit
  • Free Layout Plus
  • TX Unified Printer Driver
  • Media Configuration Tool
  • PosterArtist Lite for Windows
  • Optimized Driver for AutoCAD
  • CPP Publisher Select
  • CPP Driver Select
