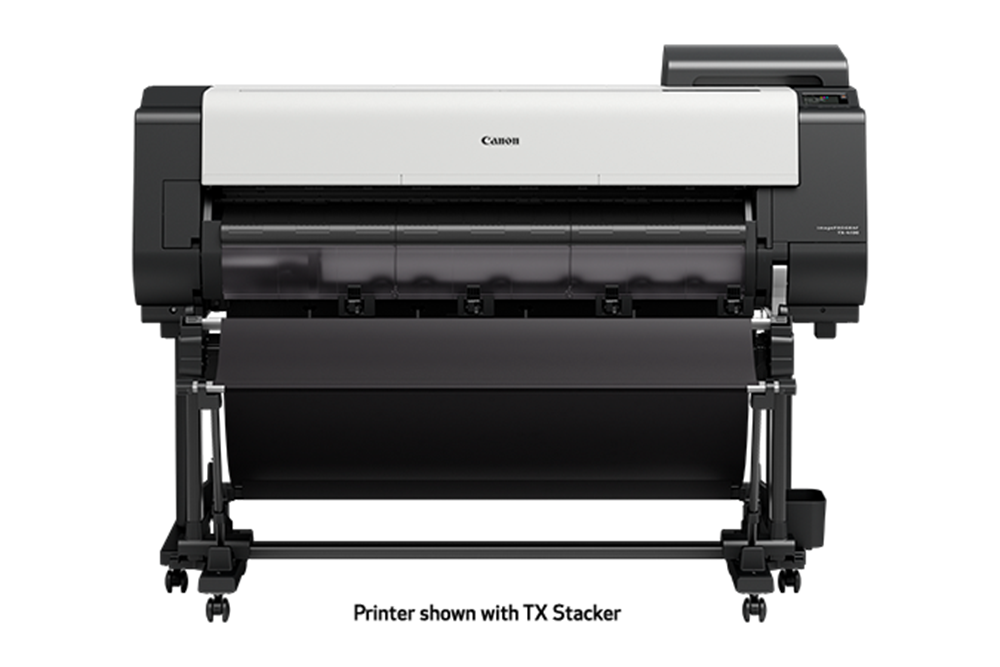

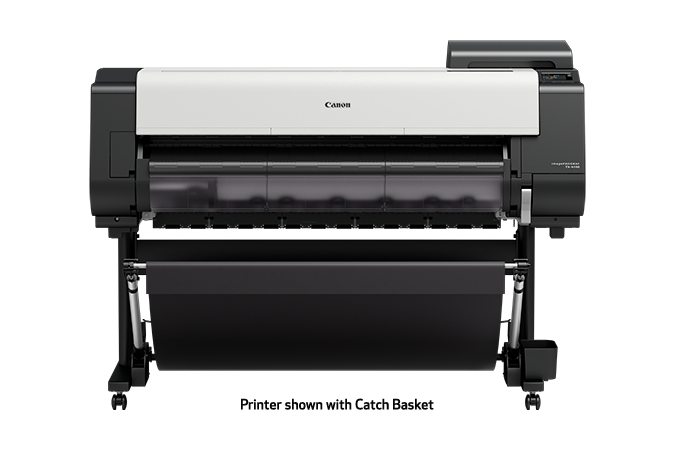

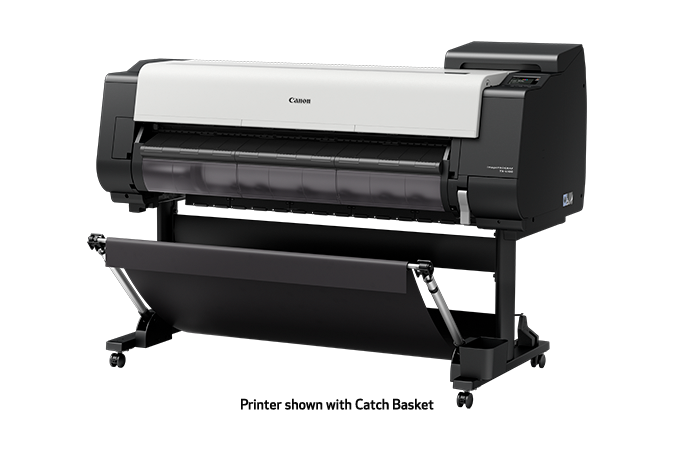

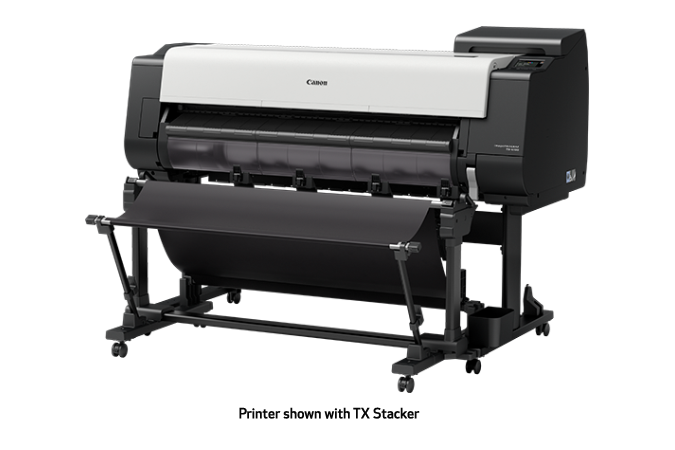

Canon imagePROGRAF TX-4100 with TX stacker, front Canon imagePROGRAF TX-4100 with TX stacker, side Canon imagePROGRAF TX-4100 with TX catch basket, front Canon imagePROGRAF TX-4100 with TX catch basket, side
Click on Image to Enlarge

Canon imagePROGRAF TX-4100 44-inch Large Format Printer 5516C001AA

Product Number: 5516C001AA
SKU: TX-4100
In Stock
Canon imagePROGRAF TX-4100 with TX stacker, front Click on Image to Enlarge
Canon imagePROGRAF TX-4100 with TX stacker, front Canon imagePROGRAF TX-4100 with TX stacker, side Canon imagePROGRAF TX-4100 with TX catch basket, front Canon imagePROGRAF TX-4100 with TX catch basket, side

Call for Best Price414-321-1422

Get the best price:

Call Live Chat E-Mail

Canon imagePROGRAF TX-4100 44-inch Printer

The new Canon imagePROGRAF TX-4100 Large Format Printer features intelligent media handling with easy access drawers for paper maintenance, and knows media type, width and length. The 5-color TD pigment ink set produces the finest lines and precisely maps text on inkjet & non-inkjet paper. Eliminate confusion with the 4.3" LCD touch screen display and control center, the operation guide can be scanned with a smartphone so users can access information from anywhere. The TX-4100 contains helpful software like the TX unified printer driver which allows user to print to any imagePROGRAF TX Series device without installing additional drivers.

A 5-color, 44” large format printer for maximum efficiency.

large-scale operations and high-volume print jobs.

We accept trade-ins for Canon iPF printers. Call 414-321-1422 for details.

Canon imagePROGRAF TX-4100 at a glance:

  • 190 D-sized prints per hour
  • Print head PF-06
  • Dual roll media system
  • Wi-Fi compatible
  • Available with TX stacker or catch basket

Canon imagePROGRAF TX-4100 Large Format Printer Specs

Printer Type

  • 5-Color, 44-inch Printer Plotter

Number of Nozzles

  • Total: 15,360
  • MBK: 5,120 nozzles
  • C, M, Y, BK: 2,560 nozzles each

Nozzle Pitch

  • 1,200 dpi
  • Non-firing nozzle detection and compensation

Print Resolution (Up to)

  • 2,400 x 1,200 dpi (Max)

OS Compatibility

  • Windows® 7, 8.1, 10 (32/64bit)
  • Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
  • Macintosh® OS 10.12.6 & later

Standard Interfaces

  • USB 2.0 High-Speed
  • 10/100/1000 Base-T/TX

Ink Droplet Size

  • 5 picoliter

Ink Capacity

  • 160ml, 330ml or 700ml per color

Ink Types

  • Pigment Ink

Color Set

  • Pigment: Matte Black, Black, Cyan, Magenta, Yellow

Buffer/Ram

  • 128 GB (Virtual)
  • 2 GB (Physical)

Hard Drive

  • 500 GB

Media Width

  • Cut Sheet: 6" - 44"
  • Roll Feed: 6" - 44"

Media Thickness

  • 0.07 - 0.8 mm (2.8 - 31.4mil)

Maximum Roll Print Length

  • Roll Feed: 59' (18 meters)

Maximum Media Roll Diameter

  • 6.7" (170mm)

Borderless Printing Width

  • all sizes

Paper Feed Method

  • Roll Feed: One Roll, Front-loading, Front Output
  • Manual Feed: Cut Sheet, Front Output

Languages

  • SGRaster, HPGL/2, HP-RTL, PDF, JPEG

Noise Level Approx

  • Operation: 51 dB (A) or less
  • Standby: 35 dB (A) or less
  • Acoustic Power: 6.9 Bels or less

Physical Dimensions

  • 46“ x 63“ x 47“ (Main unit and TX Stacker)
  • 46“ x 63“ x 39“ (Main unit and TX Catch Basket opened)

Weight

  • Approx. 278 lbs (Main unit and TX Stacker; roll holder included, no inks, no print heads)
  • Approx. 252 lbs (Main unit and Catch Basket)

Power Source

  • AC-100-240V (50-60Hz)

Power Consumption

  • Maximum: 116W or less
  • Standby: 2.0W or less
  • Power Off: 0.3W or less (Compliant with Executive Order)

Operating Environment

  • Temperature: 59°-86° F (15°-30° C)
  • Relative Humidity: 10-80% (No Condensation)

User-replaceable items

  • Print Head: PF-06
  • Maintenance Cartridge: MC-30
  • Ink Tanks: PFI-110/PFI-310/PFI-710

Software Available

  • Accounting Manager
  • Canon Print Service
  • Device Management Console
  • Direct Print Plus
  • Printer Driver Extra Kit
  • Free Layout Plus
  • TX Unified Printer Driver
  • Media Configuration Tool
  • PosterArtist Lite for Windows
  • Optimized Driver for AutoCAD
  • CPP Publisher Select
  • CPP Driver Select
