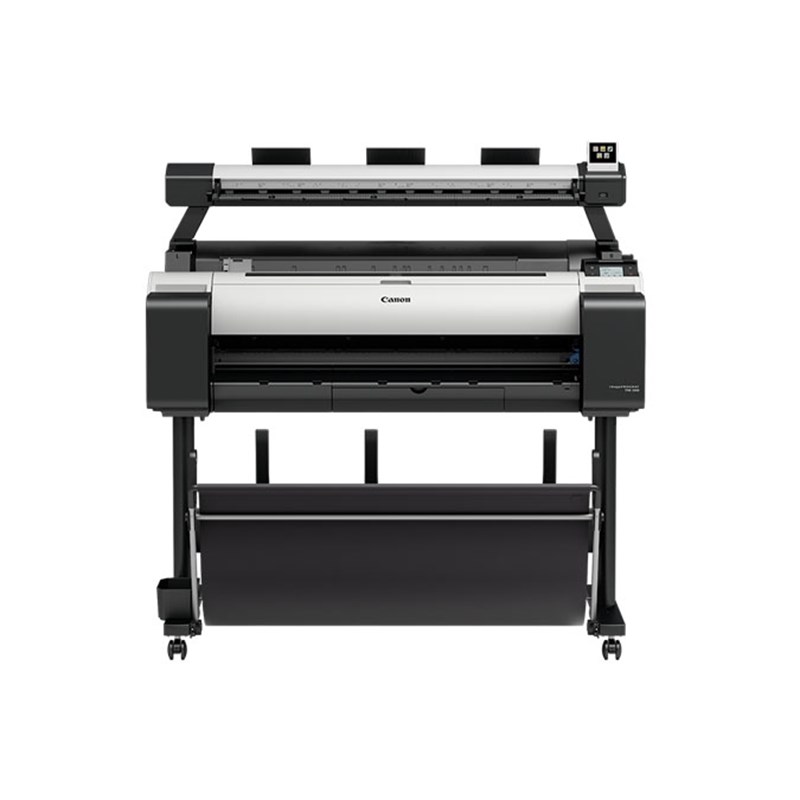

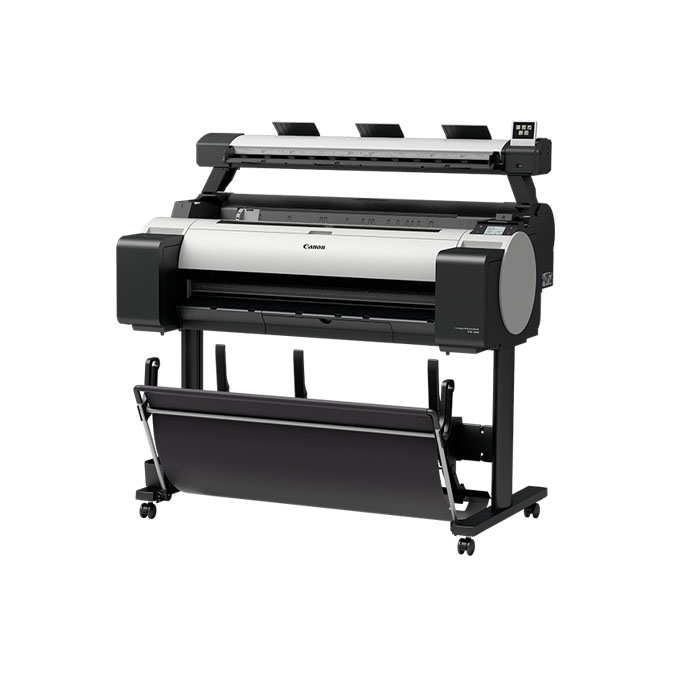

imagePROGRAF TM-300 MFP L36ei Multifunction Canon TM-300 MFP L36ei Multifunction Right View
Click on Image to Enlarge

Canon imagePROGRAF TM-300 MFP L36ei Multifunction All-In-One Printer 3058C011AA

Product Number: 3058C011AA
SKU: TM-300 MFP L36ei
In Stock
imagePROGRAF TM-300 MFP L36ei Multifunction Click on Image to Enlarge
imagePROGRAF TM-300 MFP L36ei Multifunction Canon TM-300 MFP L36ei Multifunction Right View

Call for Best Price414-321-1422

Get the best price:

Call Live Chat E-Mail

Canon imagePROGRAF TM-300 MFP L36ei Multifunction

Large Format Imaging Plotter System

With the imagePROGRAF TM-300 MFP L36ei, Canon has made large format imaging affordable for a wide range of entry-level users. This 36” wide scanner is light enough and compact enough to be set up in space-constrained offices, and its user-friendly control panel and intuitive software makes it easy for even novices to scan and print. For small volume users who require high-quality output, the TM-300 MFP L36ei is hard to beat.

TM-300 MFP L36ei at a Glance:

  • Touch Screen Operation Panel
  • 600 dpi optical resolution
  • Image scanning of up to 36” wide, fits documents 38” wide
  • Scanning speed of up to 3 inches per second monochrome, 1 inch per second color
  • Scan length of up to 109"
  • SingleSensor assembly technology for better color accuracy
  • 3 Quality Modes: Draft, Standard, and Best
  • Scan documents up to .5 mm thick
  • Face up / Rear exit
  • Straight paper path

A Perfect Blend of Versatility and Simplicity

Consisting of the TM-300 36-inch Pigment Ink Printer and Canon’s L36ei Scanner, this is the perfect system for anyone who doesn’t need all the features of Canon’s more advanced MFP T36 imaging system. Besides scan-to-copy capability, this system lets you scan to USB, scan to copy and archive, scan to multipage PDF and to PC, and reduce or enlarge images. Canon also offers their Direct Print & Share cloud portal and batch printing software as a free download, along with Free Layout Plus and PosterArtistLite.



TM-300 MFP Highlights:

  • Ease of Use - Canon designed the TM Series with a 3” color touchscreen that simplifies accessing printer information and executing simple print functions.
  • Lucia TD Pigment Ink Set - The TM-300 MFP produces dense and crisp lines and text with minimal feathering on both inkjet and non-inkjet papers. With Canon’s water-resistant media, it produces prints capable of withstanding most outdoor conditions. Available in 130 ml or 330 ml ink tanks (ships with 490 ml of ink).
  • “Hot Swap” Ink Tanks - Canon designed the ink tanks so they can be replaced during printing, eliminating job-interrupting tank change-outs.
  • Direct USB Thumb Drive Printing - The TM-300 MFP lets you print JPEG and PDG files directly from files on your USB drive. Just connect a jump drive into the port on the printer, select your document and press “Print.”
  • L-COA Processor - Canon’s L-COA processor monitors and controls ink layout to ensure high-resolution output. In conjunction with Canon’s advanced print head technology, this processor also enables print speed up to 144 A1 sized prints per hour on uncoated media.
  • Security Features - Like all the TM Series printers, the TM-300 MFP is equipped with a host of security features to help protect confidential information.

Secure Communication

  • 1x Authentication
  • SNMPv3
  • SSL/TLS
  • PSec

Functionality Restrictions

  • Panel Lock by Remote UI
  • Remote UI Multilevel
  • Hide IP from Panel
  • Panel Access Control
  • Job Storage and PIN Printing

The following functions can be disabled in administrator mode

  • Direct USB Thumb Drive Printing
  • Internet Connection
  • FTP and Telnet communication protocols
  • Job Log Look-up

Secure Storage

  • Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)

Explore the Full Line of Canon TM Series Printers

36-inch models

24-inch models





Canon imagePROGRAF TM-300 MFP L36ei Multifunction Specs

Printer Type

  • 5-color 36" Printer

Number of Nozzles

  • Total: 15,360
  • MBK: 5,120 nozzles
  • C, M, Y, BK: 2,560 nozzles each

Nozzle Pitch

  • 1,200 dpi
  • Non-firing nozzle detection and compensation

OS Compatibility

  • Windows 7, 8.1, 10 (32/64bit)
  • Windows Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
  • Macintosh OS X v10.10.5-v10.12x

Standard Interfaces

  • USB 2.0 High-Speed
  • 10/100/1000 Base-T/TX
  • Wireless LAN (IEEE 802.11 b/g/n)

Ink Droplet Size

  • 5 picoliter

Ink Capacity

  • 130ml or 300ml per color

Ink Type

  • Pigment Ink

Color Set

  • Pigment: Matte Black, Black, Cyan, Magenta, Yellow

Buffer Ram

  • 2 GB (Physical)

Media Width

  • Cut Sheet: 8-36
  • Roll Feed: 8-36

Media Thickness

  • 0.07-0.8mm

Maximum Roll Print Length

  • Roll Feed: 59' (18 meters)

Maximum Media Roll Diameter

  • 5.9" (150 mm)

Borderless Printing Width

  • 8”, 10, 12”, 14, 16” 17, 20”, 24, 36, B4 (10.12/257 mm), A3 (11.69/297 mm), A3+ (12.95/329 mm), A2 (16.54/420 mm), B2 (20.28/515 mm), A1 (23.39/594 mm), B1 (28.66/ 728 mm), A0 (33.11/841 mm)

Paper Feed Method

  • Roll Feed: One Roll, Top-loading, Front Output
  • Cut Sheet: Top Loading, Front Output

Languages

  • SGRaster, HPGL/2, HP-RTL, JPEG

Noise Level Approx

  • Operation: 44 dB (A) or less
  • Standby: 35 dB (A) or less
  • Acoustic Power: 6.0 Bels or less

Physical Dimensions

  • 42 x 51 x 35

Weight

  • Approx. 130 lbs (roll holder included, no inks, no print heads)

Power Source

  • AC100-240V (50-60Hz)

Power Consumption

  • Maximum: 69W or less
  • Standby: 3.6W or less
  • Power Off: 0.3W or less (Compliant with Executive Order)

Operating Environment

  • Temperature: 59°-86° F (15°-30° C)
  • Relative Humidity: 10-80% (No Condensation)

User-Replaceable Items

  • Print Head: PF-06
  • Maintenance Cartridge: MC-31
  • Ink Tanks: PFI-120/PFI-320
  • Cutter Blade: CT-08

Software Included

  • TM Unified Printer Driver, Accounting Manager, Apple AirPrint, Canon Print Service, Device Management Console, Direct Print & Share, Free Layout Tool, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, Canon PRINT Inkjet Selphy, Easy Photo Print Editor

Scanner

  • Scanner Type: Contact Image Sensor (CIS) technology
  • Scan Accuracy: +/- 0.20%
  • Speed: 3 ips monochrome, 1 ips color (Copy, Standard Mode)
  • Optical Resolutions: 600dpi
  • Max Resolutions: 600dpi
  • Max. Document Width: 26 inch document width (24 inch image width)
  • Max. Document Length: 109 inches
  • Max. Document Thickness: 0.5in (2mm)
  • Standard Interface: (Scan to USB) USB 2.0 / (Scan to Network) Gigabit Ethernet
