T2300 PostScript eMultifunction (CN728A)

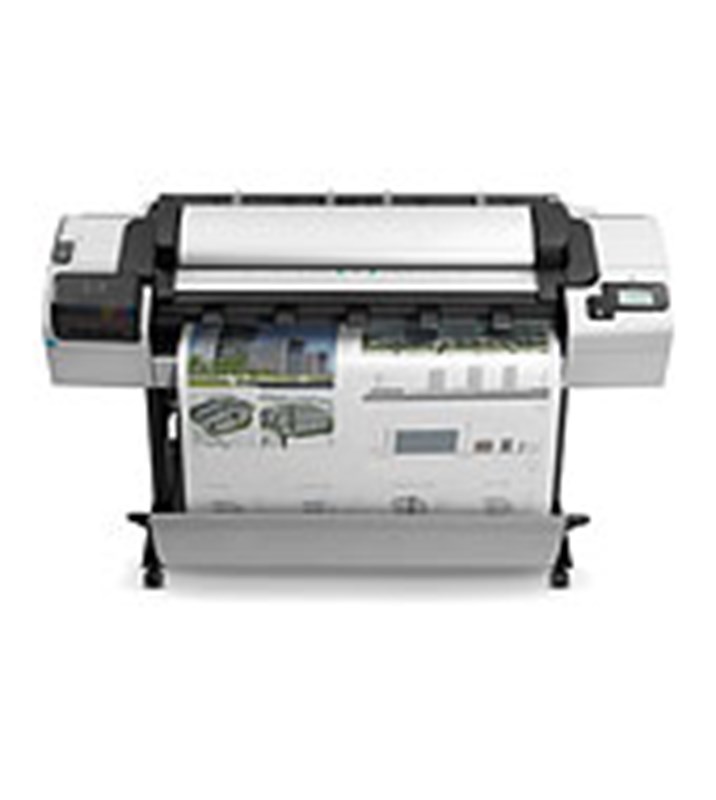

HP DesignJet T2300 PostScript Multifunction Printer
The DesignJet T2300 PostScript Multifunction Printer is an all-in-one solution that is made convenient for companies. This printer uses 6 different inks to get an extremely accurate color accuracy that is resistant to smearing and ink spreading as it leaves the printer It is designed to efficiently print larger scaled jobs with effortlessly. The HP DesignJet t2300 has a built-in automatic cutter and auto-roll switching which leads to less time and labor working on projects. The HP DesignJet T2300 printer can be used with a wide variety of media which includes bond paper, technical paper, coated paper, film, photo paper and self-adhesive sheets. The scanner can handle a standard 20# bond paper as well as thicker medias. Scanning-in hand-drawn projects and CAD drawings can easily be shared with anyone via email. Those scans and drawings are saved on an internal 160 GB hard for later use. This printing system is designed to inspire and aid collaboration in and out of your office.
HP simplifies the printing experience with the first-ever Web-connected MFP for design teams. It lets you access Print Apps directly from the color touchscreen, so adding new functions is easy. Plus, it comes with HP ePrint & Share.
Features
So easy and intuitive, you’ll love using it.
- One-click print, scan, and copy.
- Create a print-ready PDF at the same time you print with HP ePrint & Share.
- Discover the power of touch—this eMFP's color touchscreen enables intuitive operation and page previews.
- Web-connected and easy to update. Software updates occur automatically, every six months.
Instantly share and manage content with your teams.
- Scan sketches and hand-annotated drawings.
- Scan drawings to create print-ready files. Share them via an e-mail link to your HP ePrint & Share library.
- Work on multiple projects at the same time with two rolls and smart switching.
- Keep the collaborative flow - you get consistent quality results with HP printing materials and Original HP supplies.
Print and scan on the go with HP ePrint & Share.
- Instantly scan content, upload it, or send it directly to HP ePrint & Share.
- Print remotely to any large-format HP Web-connected Designjet from your computer or mobile device.
- Print TIFF, JPEG, and PDF files directly from your USB thumb drive; no PC required.
- Print to any HP Designjet printer without installing multiple drivers with HP ePrint & Share.
Eco Highlights
- Save paper with automatic print settings and image nesting.
- Less ink wasted due to efficient installation and maintenance routines.
- Free, convenient HP ink cartridge and printhead recycling.
Printing Specifications | |
---|---|
Model size | 44 in |
HP e-Print | Yes |
Functions | |
---|---|
All-in-one functions | Print, copy, scan |
Print Speed | |
---|---|
IPG: (ALL) Print Speed (imperial) | 549 ft²/hr |
IPG: (ALL) Print Speed (metric) | 51 m²/hr |
Mechanical print time, US D color line drawing, Draft mode, plain | 28 sec/page |
Mechanical print time, US D b&w line drawing, Draft mode, plain | 28 sec/page |
US D color line drawings/hr, Draft mode, plain | 80 D prints per hour |
Mechanical print time, US D b&w line drawing, Draft mode, plain | 80 D prints per hour |
Mechanical print time, US D line drawing, Economode, plain | 103 D prints per hour |
Memory | |
---|---|
Memory, standard | 32 GB (virtual) |
Hard disk | Standard, 160 GB |
Printing | |
---|---|
Print technology | HP Thermal Inkjet |
Print resolution, color | Up to 2400 x 1200 optimized dpi from 1200 x 1200 input dpi and Optimization For Photo Paper selected |
Print resolution, black | Up to 2400 x 1200 optimized dpi from 1200 x 1200 input dpi and Optimization For Photo Paper selected |
Non-Printable Area (imperial cut-sheet) | 0.2 x 0.67 x 0.2 x 0.2 in |
Ink types | Dye-based (C, M, Y, G, pK); pigment-based (mK) |
Ink cartridges | 6 (cyan, gray, magenta, matte black, photo black, yellow) |
Maximum roll length | 300 ft (application dependent) |
Line accuracy | +/- 0.1% |
Connectivity, standard | Gigabit Ethernet (1000Base-T); EIO Jetdirect accessory slot; Hi-Speed USB 2.0 certified |
Print languages, standard | Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, HP-GL/2, HP-RTL, CALS G4, HP PCL 3 GUI |
Paper Handling | |
---|---|
Document finishing | Printer: sheet feed, two automatic roll feeds, automatic roll-switching, automatic cutter; scanner: straight-through scan paper path for sheet and cardboard originals |
Media types | Printer: bond and coated paper, technical paper, film, photographic paper, backlit, self-adhesive; scanner: non-abrasive paper, vellum, translucent, opaque Mylar, recycled, blueprints, cardboard (No plywood, stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or transparencies) |
Media sizes, standard | Letter to E-size sheets; 11 to 44-in rolls |
Rolls External Diameter | 5.3 in |
Media thickness (by paper path)*** | Up to 31.5 mil |
Scanning | |
---|---|
Linear scan speed | Up to 1.5 in/sec (color, 200 dpi); up to 4.5 in/sec (grayscale, 200 dpi) |
Scan resolution color (best) | 600 dpi |
Scan resolution, optical | 600 dpi |
Scan resolution, hardware | 600 x 600 dpi |
Scanner type | Sheetfed, CIS (Contact Image Sensor) |
Scan size, maximum (flatbed) | 36 x 93.6 in |
Copying | |
---|---|
Copy reduce/enlarge settings | 25 to 400% |
Maximum number of copies | Up to 99 copies |
Compatible Operating Systems | |
---|---|
Compatible operating systems | Microsoft® Windows® 7 Ultimate/Professional/Home Premium, Windows Vista® Ultimate/Business/Home Premium, Windows® XP (32-bit, 64-bit) Professional/Home, Windows® Server 2008 (32-bit, 64-bit), Windows® Server 2003 (32-bit, 64-bit); Mac OS X v 10.4, v 10.5, v 10.6; Citrix XenApp; Citrix XenServer; Linux (see http://www.hplip.net) |
Dimensions and Weight | |
---|---|
Product dimensions (WxDxH) | 69.7 x 39.8 x 44.3 in |
Weight | 226 lb |
What's Included | |
---|---|
What's in the box | HP Designjet T2300 eMultifunction Printer; printheads; introductory ink cartridges; printer stand; spindle; quick reference guide; setup poster; startup software; Scan2CAD software (free trial); AutoCAD Raster Design software; USB cable; power cord |
Software included | HP Instant Printing, SCP reprocontrol for HP (free trial), Scan2CAD Pro (free trial), AutoCAD Raster Design, HP Utility for Mac and Windows |
Warranty | One-year limited hardware warranty |
