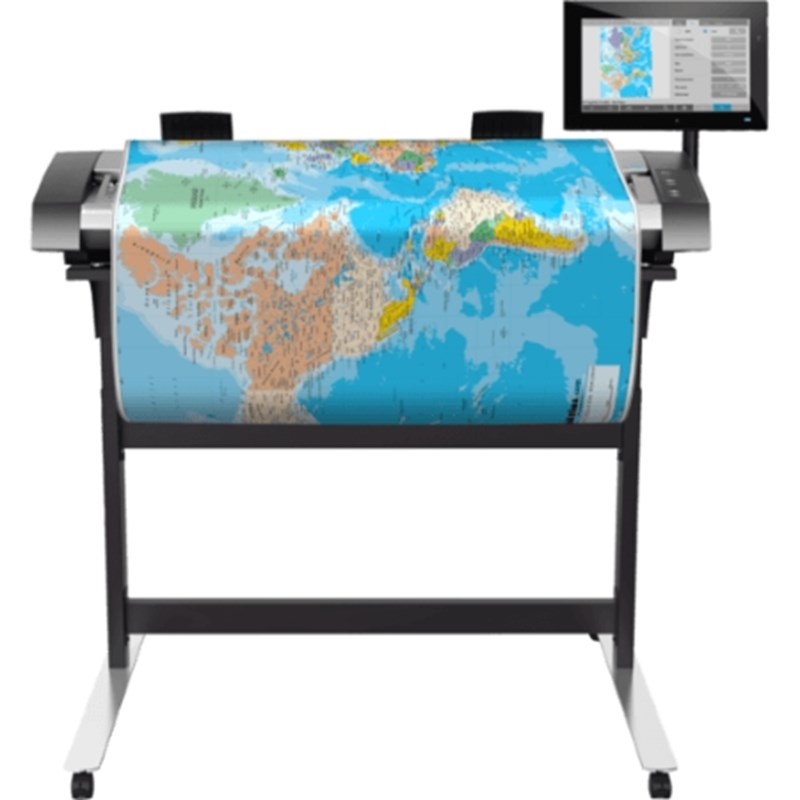

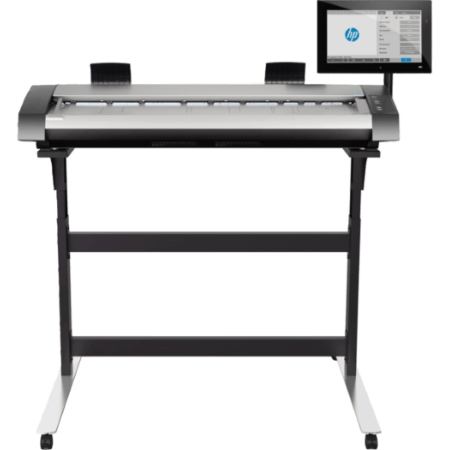

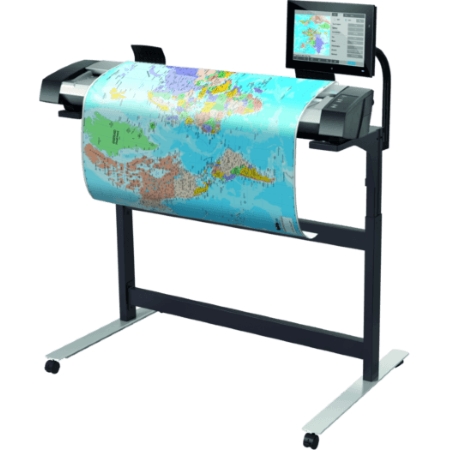

HP DesignJet HD Pro 42-in Scanner

Product Number: G6H51B
SKU: G6H51B
In Stock
HP DesignJet HD Pro 42-in Scanner Click on Image to Enlarge
HP DesignJet HD Pro 42-in Scanner HP DesignJet HD Pro 42-in Scanner 2 HP DesignJet HD Pro 42-in Scanner 3 HP DesignJet HD Pro 42-in Scanner 4

Call for Best Price414-321-1422

Get the best price:

Call Live Chat E-Mail

HP DesignJet HD Pro 42-in Scanner G6H51B

The HP HD Pro 42-in Scanner produces high-quality scan results with CCD technology. This scanner has incredible processing speeds. Improve efficiency and productivity with a set of enhanced features and is conveniently compatible with most HP large-format printers.

It can reproduce maps, technical drawings, paintings, artwork and photos in color and black-and-white. Scans in HD quality with any type of originals and any matter of conditions. Produces scans on multiple media up to 42 inches and the quality of 1200 dpi. Easily scans to multiple different destinations. Work effectively with a seamless, secure workflow. Easily helps to avoid reprints with a touchscreen attached to the scanner. You can be assured that your work is secure with this scanner’s advanced security features. This scanner can effectively scan in multiple types of media including non-abrasive paper, vellum, mylar, blueprints, plastic, film, plastic laminate, foam board, cardboard, newspaper, and tracing paper.



HP DesignJet HD Pro Scanner Specs:

Model Size

  • 42 in

Functions

  • Copy, scan

Line accuracy

  • ±0.1% ±1 pixel

Printer drivers included

  • Windows drivers for compatible HP PageWide XL and HP DesignJet Printers

Internal Storage

  • Standard: 500 GB

Memory

  • 4 GB

Scanner type

  • CCD scanning technology

Scan size, maximum

  • 1067 mm x 21.6 m
    914 mm x 26 m
    610 mm x 37.9 m
    305 mm x 75.76 m
    (using a color original at 200 dpi and TIFF file format)

Scan size, minimum

  • 152 x 114 mm

Scan file format

  • PDF
    TIFF
    JPEG
    JPEG2000
    DWF
    CALS (B&W)
    Multi-page PDF generation

Scan input modes

  • File
    Email
    USB
    HDD
    Network folder
    FTP
    Print

Maximum media thickness

  • 15 mm

Linear scan speed

  • Up to 15 cm/sec (color, 200 dpi)
    Up to 33 cm/sec (grayscale, 200 dpi)

Scan speed footnote

  • Monochrome scanning:
    A1/D image with black text graphics at 200 dpi
  • Color scanning:
    A1/D fully-inked color image at 200 dpi, 24-bit RGB

Scan Resolution, Optical

  • 1200 dpi

Enhanced scanning resolution

  • 9600 dpi

Copier settings

  • Type of original; image crop and align preview; lightness; saturation and RGB controls; white point and black point adjust; sharpen/blur; mirror copy; enlarge/reduce; paneling; tiling; nesting; accounting; batch; multipage PDF generation; invert; collate copy with reprint

Copies, maximum

  • Unlimited

Connectivity, standard

  • Dual Gigabit Ethernet (1000Base-T)
  • Hi-Speed USB 3.0 certified

Power Consumption

  • 90 watts (scanning)
  • 80 watts (ready)
  • < 3 watts (sleep)

Power

  • Input voltage (auto-ranging):
    100-240 V (±10%)
    50/60 Hz
    5 A max

Finished output handling

  • Straight-through scan paper path for sheet and cardboard originals, adjustable paper pressure for very thin media. Face-down, front entry, rear exit, rewind to front, use document return guide for front-return. Automatic high adjustment of scanner bridge for thick originals up to 15 mm (0.6 in) thickness.

Media types

  • Non-abrasive paper, vellum, Mylar, sepia, blueprints, plastic, film, plastic laminate, foam board, cardboard, newspaper, tracing paper. Varying condition documents: old, delicate, folded, creased, crumpled, damaged originals (no plywood, stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or transparencies)

Media width, maximum

  • 1118 mm

Supported Primary Applications

  • Digital fine art; Graphics design; Line drawings; Maps; Orthophotos; Photos; Renderings; Presentations
