HP DesignJet T7200 Production Printer F2L46A T7200 Production Printer F2L46A HP DesignJet T7200 Printer
HP DesignJet T7200 Production Printer F2L46A
Click on Image to Enlarge

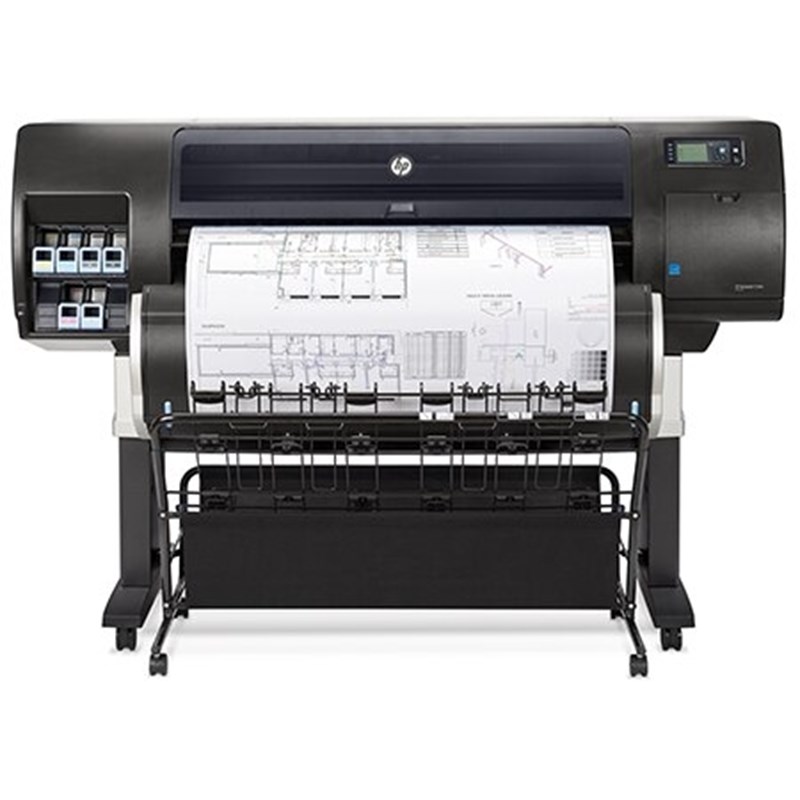

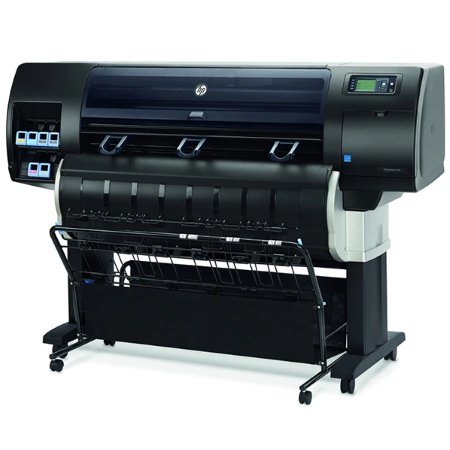

HP DesignJet T7200 Production Printer

Product Number: F2L46A
SKU: F2L46A
In Stock
Data Sheet PDF
HP DesignJet T7200 Production Printer F2L46A Click on Image to Enlarge
HP DesignJet T7200 Production Printer F2L46A T7200 Production Printer F2L46A HP DesignJet T7200 Printer

Call for Best Price414-321-1422

Get the best price:

Call Live Chat E-Mail

HP DesignJet T7200 Production Printer F2L46A

Accelerate production with high-speed color printing that delivers up to an impressive 4 D/A1-size pages per minute. This printer can be your go-to for all your black and white color needs, from CAD drawings and renderings to graphics. Maximum versatility allows for printing on a large variety of media, from bond paper to glossy photo paper.

HP DesignJet T7200 Production Printer F2L46A Specs:

Model Size
  • 42 in

Functions
  • Print

Speed Specifications
  • Print time color image ISO N5 (best, D glossy paper)
    4 min/page
  • Print time color image ISO N5 (normal, D glossy paper)
    3.1 min/page
  • Print time color image ISO N5 (draft, D coated paper)
    17.5 sec/page
  • Print time color image ISO N5 (normal, D coated paper)
    1.25 min/page
  • Print time line drawing (economode, D plain paper)
    15.5 sec/page
  • Print speed line drawing (economode, D plain paper)
    165 D prints per hour
  • Print speed
    1320 ft²/hr
  • (Mechanical printing time. Printed in Fast mode on HP Bright White Inkjet Paper (bond). Speed indicated is maximum printer speed)

Memory specifications
  • Memory
    64 GB (virtual)
  • Internal storage
    Standard, 320 GB

Technical Specifications
  • Print quality (best)
    Color: Up to 2400 x 1200 optimized dpi
  • Print Technology
    HP Thermal Inkjet

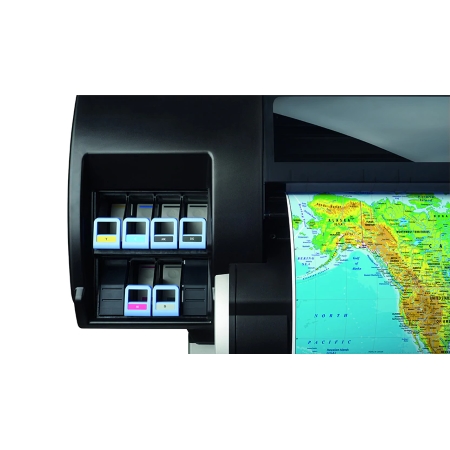

  • Number of print cartridges
    6 (cyan, magenta, yellow, matte black, gray, dark gray)
  • Ink types
    Dye-based (C, M, Y, G, DG)
    Pigment-based (mK)
  • Guaranteed minimum line width
    0.0024 in (ISO/IEC 13660:2001(E))
  • Line accuracy
    ±0.1%

Paper handling
  • Finished output handling
    Two roll feeds (upgradeable to three)
    Automatic roll switching
    Rolls up to 200 m (650 ft) each
    Automatic cutter
    Media bin
  • Media types
    2 and 3-in core: bond and coated paper (bond, coated, recycled, heavyweight coated), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), self-adhesive (indoor paper, polypropylene, vinyl), banner and sign material (backlit, outdoor paper, blue back billboard paper)
  • Media weight, recommended
    16 to 90 lb
  • Media sizes, standard (sheets, rolls)
    11 to 42-in rolls
  • Roll external diameter
    7.08 in
  • Media thickness
    Up to 15.7 mil

Connectivity
  • HP ePrint capability
    No
  • Printing path
    HP SmartStream, printer driver, HP Embedded Web Server
  • Connectivity, standard
    Gigabit Ethernet (1000Base-T)
    EIO Jetdirect accessory slot
  • Print languages
    HP-GL/2, HP-RTL, CALS G4

Power and operating requirements
  • Power consumption
    270 watts (printing); < 48 watts (ready); < 5.3 watts (sleep); < 0.3 watts (off)
  • Energy efficiency
    ENERGY STAR® qualified, EPEAT® Bronze
  • Operating temperature range
    41 to 104°F
    (5 to 40°C )
  • Operating humidity range
    20 to 80% RH

Dimensions and weight
  • Minimum dimensions (W x D x H)
    77.7 x 27.6 x 54.1 in
  • Weight
    412 lb

What's included
  • Warranty
    One-year limited hardware warranty
  • What's in the box
    HP DesignJet T7200 Production Printer; 2-in spindle; printheads; introductory ink cartridges; printer stand and media bin; 3-in spindle adapter kit (x2); maintenance cartridge; startup software; quick reference guide; setup poster; power cords
  • Software included
    HP Utility for Mac and HP DesignJet Utility for Windows
    HP SmartStream for HP DesignJet (free trial)
