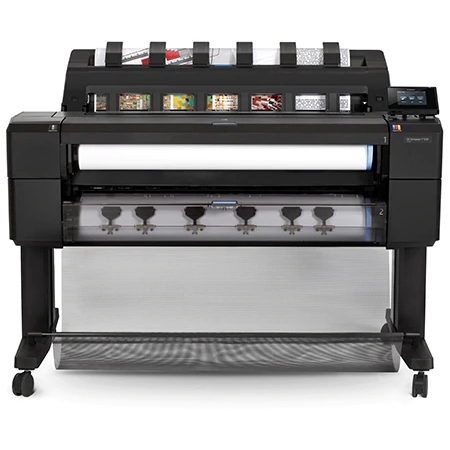

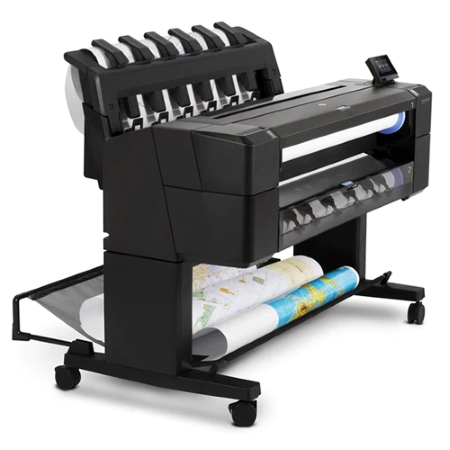

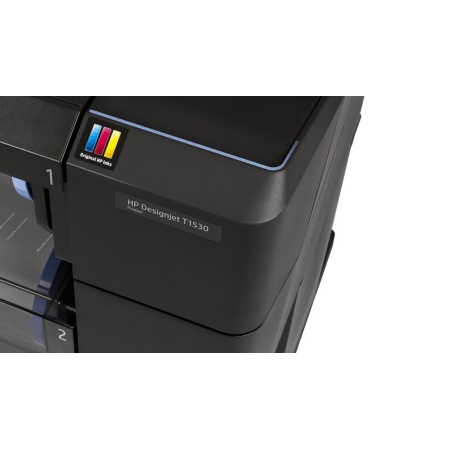

HP DesignJet T1530 PostScript® Printer (36 in) L2Y24A

Perfect for AEC, GIS, and MCAD professionals who need to print technical drawings, posters, renders, and maps with precision line quality and clear, crisp text. Clients are sure to be impressed with the professional quality of the product the DesignJet T1530 outputs. Color graphics print with a wide color gamut with 6 original HP inks. Original HP gray and photo black inks ensure precise line accuracy, darker blacks, and true neutral grays. Stay focused and organized with an integrated 50-page output stacking tray that delivers flat and collated prints. Protect sensitive information with security protocols like IPSec, 802.1x, SNMPv3, PIN printing, and other options.

HP DesignJet T1530 36-in PostScript® Printer Specs:
Model Size	36 inch
Speed Specifications	Print time line drawing (economode, D plain paper) 21 sec/page Print speed line drawing (economode, D plain paper) 120 D prints per hour
Memory Specifications	Memory 96 GB (file processing) Internal storage Standard, 500 GB
Technical Specifications	Print quality (best) Color: Up to 2400 x 1200 optimized dpi Print Technology HP Thermal Inkjet Number of print cartridges 6 (cyan, gray, magenta, matte black, photo black, yellow) Ink types Dye-based (C, G, M, pK, Y) Pigment-based (mK) Non-printable area (cut-sheet) 0.1 x 0.87 x 0.1 x 0.1 in Guaranteed minimum line width 0.0028 in (ISO/IEC 13660:2001(E)) Line accuracy ±0.1% Maximum optical density (black) 6 L* min/2.15 D
Paper Handling	Finished output handling Input: two automatic front-loading roll feeds Sheet feed Output: integrated output stacking tray (from A4/A to AO/E, with up to 50 A1/D-size capacity) Media bin Automatic cutter Media types Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl) Media sizes, standard (sheets, rolls) 8.3 to 36-in wide sheets 11 to 36-in rolls Media sizes, custom 8.3 x 11 to 36 x 48 in Roll external diameter 5.5 in Media thickness Up to 19.7 mil
Connectivity	HP ePrint capability Yes Printing path Direct printing from USB flash drive, email printing, HP driver for Windows, HP driver for MAC OS X, HP Print Service for Android, Apple AirPrint driver, HP Print for Chrome OS Connectivity, standard Gigabit Ethernet (1000Base-T) Print languages Adobe PostScript 3, Adobe PDF 1.7 Extension Level 3, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF
Power & Operating Requirements	Power consumption 120 watts (printing); 1.3 watts (5 watts with embedded Digital Front End) (sleep) Operating temperature range 41 to 104°F (5 to 40°C ) Operating humidity range 20 to 80% RH
Dimensions & Weight	Minimum dimensions (W x D x H) 55.1 x 36.1 x 43.7 in Weight 194 lb
What's Included	Warranty One-year limited hardware warranty What's in the box HP DesignJet T1530 Printer; printhead; introductory ink cartridges; stacking tray; printer stand and media bin; spindles; quick reference guide; setup poster; startup software; power cord
