Canon imagePROGRAF PRO-6000

Product Number: 2400C006AA
SKU: iPF PRO-6000
In Stock
anon imagePROGRAF PRO-6000 Click on Image to Enlarge

Call for Best Price414-321-1422

Get the best price:

Call Live Chat E-Mail

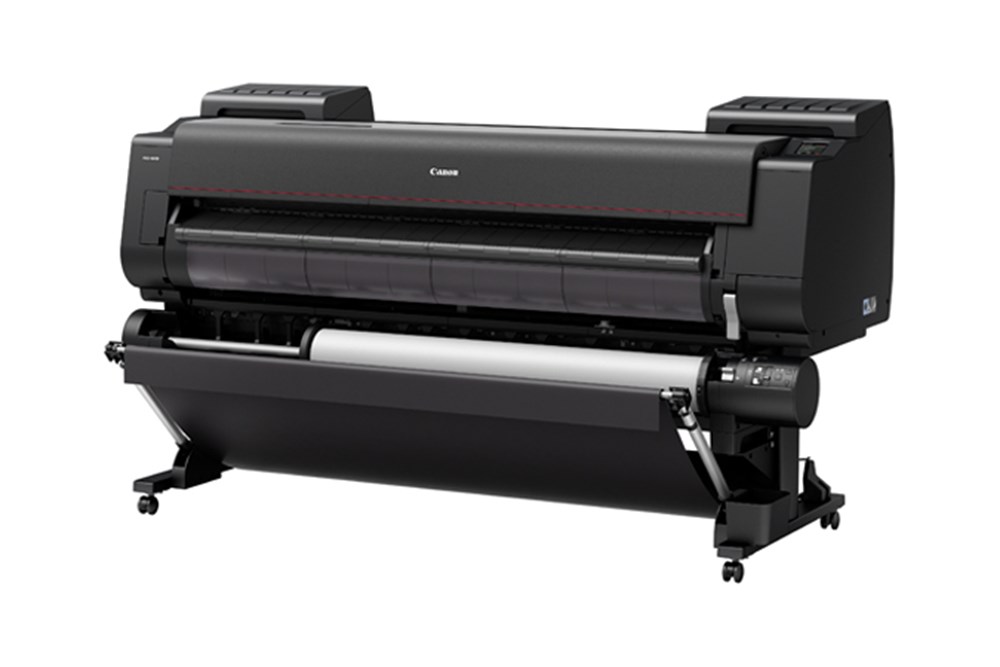

Canon imagePROGRAF PRO-6000 60-inch Large Format Printer

Canon imagePROGRAF PRO-6000 Based on the advanced Canon PRO printing platform the 60-inch Canon PRO-6000 outputs extraordinarily high-quality images with a wide color gamut, sophisticated color management functions and innovative media handling solutions. Designed primarily for digital photographers and graphic artists, the PRO-6000 raises the bar for print quality.

Canon has loaded this printer with an arsenal of innovative technology, including a 1.28-inch wide 12-channel integrated compact print head, their LUCIA PRO ink set plus Chroma Optimizer, and the L-COA PRO high-speed image processing engine. With the PRO-6000, Canon has found the sweet spot between exceptional print quality and speed.

Canon imagePROGRAF PRO-6000 at a glance:

  • 60” printable width
  • 2400 x 1200 maximum resolution
  • Canon Lucia Pro ink set with 11-color pigment inks and Chroma Optimizer
  • Sub-Ink Tank System allows all ink in tank to be used and enables on-the-fly replacement of empty tanks
  • PF-10 print head with 18,432 nozzles and anti-clogging FINE technology
  • L-COA PRO high-speed image processing engine
  • Multifunction Roll System enables a second roll of media to be loaded on printer, or used as a bi-directional take-up unit

Canon imagePROGRAF PRO-6000 Overview



Canon imagePROGRAF PRO-6000 60-inch Printer Specs

Canon imagePROGRAF PRO-6000 Print Specs

Printing Technology

  • FINE: Full-Photolithography Nozzle Engineering

Head Configuration

  • 12-Channel Integrated Type

Nozzle Configuration

  • 1,536 Nozzles x 12 Channels: 18,432 Total

Minimum Droplet Size

  • 4 Picoliters per Color

Maximum Print Resolution

  • Up to 2400 x 1200 dpi

Ink Information

  • Type-Pigment-Based LUCIA PRO Ink Technology
  • PFI-1100 (160 ml): PBK, MBK, C, M, Y, PC, PM, GY
  • PFI-1300(330 ml): PBK, MBK, C, M, Y, PC, PM, GY
  • PFI-1700(700 ml): PBK, MBK, C, M, Y, PC, PM

Ink Capacity

  • 160, 330, or 700ml per color

Print Head

  • PF-10

Colors

  • Photo Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Photo Gray

Ink Tank Shipped with Printer

  • 8 colors:
  • MBK/C/Y (330 ml Starter Tank, Each Color)
  • PBK/PC/PM/GY(190 ml Starter Tank, Each Color)

Hard Disk Capacity

  • 320 GB

Printer Memory

  • 3 GB

Printer Stand

  • Standard

Display

  • 3.5" Color LCD Touch-Screen

Size/Weight (with basket open)

  • PRO-6000: 46.0" (H)x 78.7" (W) x 38.7" (D)/Approx.  359 lb.

Canon imagePROGRAF PRO-6000 Media Specs

Media Feed

  • Roll Feed: One Roll, Front-loading, Front Output Manual Feed: Front-loading, Front Output

Media Width

  • PRO-6000: 8" x 60" (Cut-Sheet and Roll)

Minimum Media Length

  • 8"

Maximum Print Length

  • 59" (Roll Paper)
  • 63" (Cut-Sheet)

Borderless Printing Widths

  • PRO-6000: (Roll Media Only) 10, 14, 17, B2 (20.3/515 mm), A1 (23.4/594mm), A0 (33.11841mm), 24, 36, B0 (40.6/1,030mm), 42,44, 60

Media Thickness

  • .07 mm - 8 mm

Media Core Sizes

  • 2" or 3" Core(with Supplied Adapter)

Printable Margins

  • Roll Paper: Top: 3 mm: Bottom: 3mm: Side: 3mm
  • Cut-Sheet: Top: 3 mm: Bottom: 20 mm: Side: 3mm

Maximum Media Roll (Outer Dia.)

  • 6.7" (170 mm)

Canon imagePROGRAF PRO-6000 General Info

Interfaces

  • HiSpeed USB. 10/100/1000Base-T/TX Wireless Lan (IEEE 802.11 b//g/n)

Printer Language

  • Swift Graphic Raster (SGRaster)

Recommended Operating Environment"

  • Temperature: 59 - 86 degrees F (15-30 C)
  • Humidity: 10 - 80% (No Condensation)

Power Supply

  • AC 100-240 V (50 - 60 Hz)

Power Consumption

  • PRO-6000 Maximum: 103W or Less
  • Standby: 1.8W or Less
  • Power Off: 0.3W or Less

Printing Software

  • imagePROGRAF Printer Driver, Print Studio Pro, Quick Utility Toolbox, Print Plug-In for Office, Accounting Manager, Device Management Console, Media Configuration Tool, Printer Driver Extra Kit (Free Layout and Advanced Preview), Print Plug-in for Microsoft Word/Excel/PowerPoint (PC only), Gallery Wrap Feature, Direct Print & Share4

Optional Software

  • PosterArtist

OS Compatibility

  • 32bit: Windows® (Vista/7/8, 8.1/10)
  • 64bit: Windows® (Vista/7/8, 8.1/10)
  • Mac (OS X 10.7.5-10.11x)
  • Mac (OS 10.12)

Utilities

  • Accounting Manager, Device Management Console, Media Configuration Tool, Quick Utility Toolbox

User-Replaceable items

  • Print Head (PF-10)
  • Maintenance Cartridge (MC-30)
  • Rotary Cutter (CT-07)

Options

  • PRO-6000: Roll holder Set (RH2-65)
